| ブランド名: | SANROCK POWER |
| モデル番号: | SP550CZ-20TP |
| MOQ: | 1セット |
| Price: | Chat with supplier now for more details. |
| パッケージの詳細: | 機械のヌードパッケージ 部品の木箱パッケージ または顧客の要求 |
| 支払条件: | MoneyGram、Western Union、T/T、D/P、D/A、L/C |

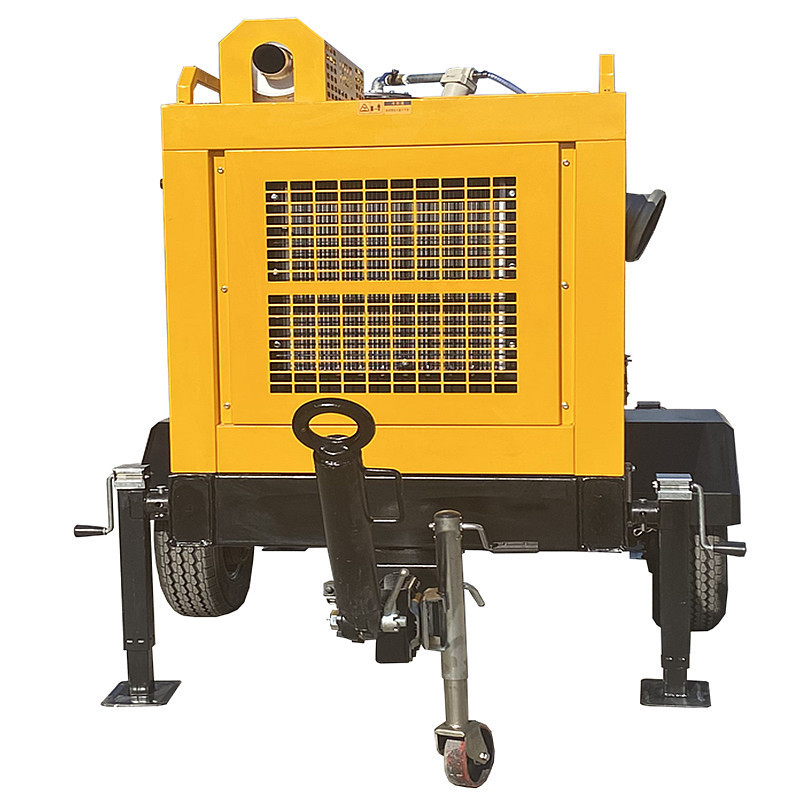

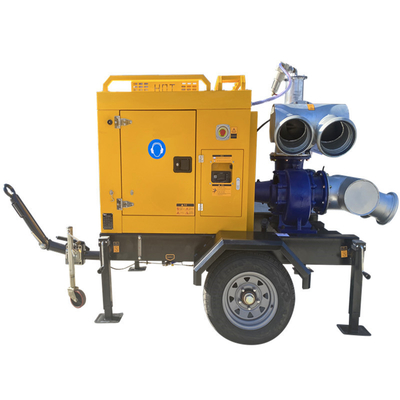

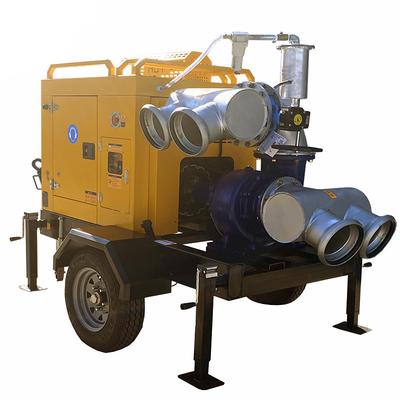

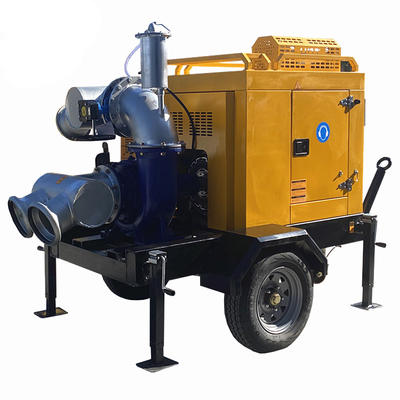

Diesel engine driven self-priming pump is a pump with a novel structure developed on the base of similar technology abroad. The perfect combination of diesel engine and self -priming pump, together with four-wheel mobile trailer and outdoor shelter makes field operation possible, beyond the restriction of climate. The operation can be controlled both manually and automatically.

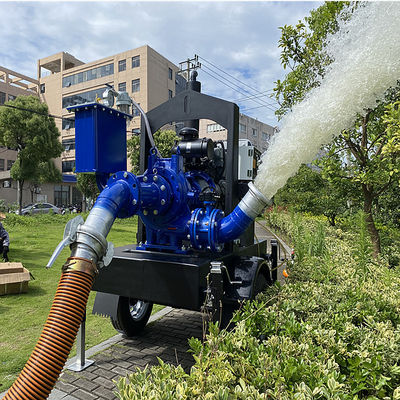

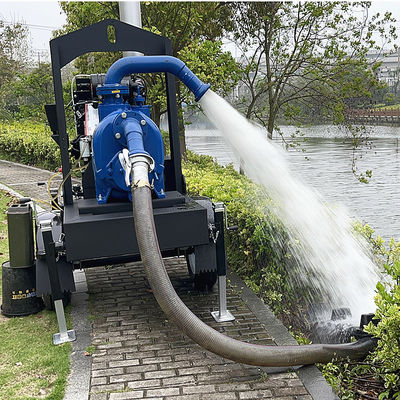

Combined self-priming with non-clogging sewage, possessing the structure of axial-flow outer recirculation, the uniquely-designed pump body and impeller channel, diesel engine driven self-priming pump can absorb and discharge liquid with large particles and continuous fiber impurities, just as self-priming fresh water pump, without using bottom valve and pump container for water diversion. This pump is therefore can be widely used in municipal sewage discharge system as well as flood-fighting and emergency rescues.
1. Stable performance, reliable operation;
2. Rapid self-priming, high suction head;
3. Back-pull-out construction: Convenient for maintenance and trouble shooting. Daily maintenance can be performance rapid by common head tools, saving time and labor;
4. Semi-open impeller structure and non-clogging design: Strong passing capacity, Diameter of maximum solid handling is 76mm.
How can I place the order?
Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will ship the goods.
Warranty service
Product parameters table
| Model | SP550CZ-20TP | SP1000CZ-20TP | SP1700CZ-20TP | SP2000CZ-20TP |
| Inlet & Outlet Port(mm) | 150 | 200 | 300 | 350 |
| Max.Flow (m³/h) | 550m³/h | 1000m³/h | 1700m³/h | 2000m³/h |
| (DN150) | (DN200*2) | (DN200*3) | (DN200*4) | |
| Max.Head (m) | 20 | 20 | 15 | 20 |
| Speed (rpm) | 1500 | 1800 | 1500 | 1500 |
| Solid Handing (mm) | 76 | 76 | 76 | 76 |
| Main Product Form / Deployment Mode | Portable / Trailer Mounted / Truck Mounted / Containerized / Robotic / Fixed |
| Control Options | Manual / Semi-Automatic / Fully Automatic / Remote Monitoring / Intelligent Control |
| Integrated Feature Options | Power Generation / Self-Unloading / Autonomous Movement & Operation / Data Cloud Platform Access |
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck
3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
ビデオ
|
