| ブランド名: | SANROCK POWER |
| モデル番号: | SPT-10TCP |
| MOQ: | 1セット |
| 価格: | Chat with supplier now for more details. |
| パッケージの詳細: | 機械用のヌードパッケージ、スペアパーツ用の木製ボックスパッケージ、または顧客の需要。 |
| 支払条件: | MoneyGram、Western Union、T/T、D/P、D/A、L/C |

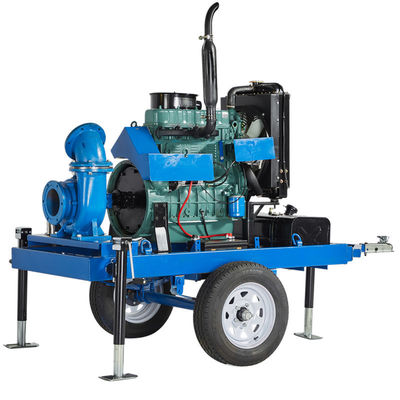

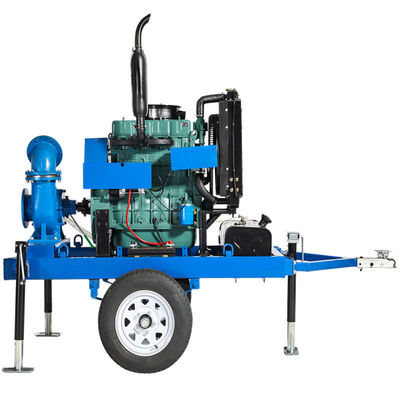

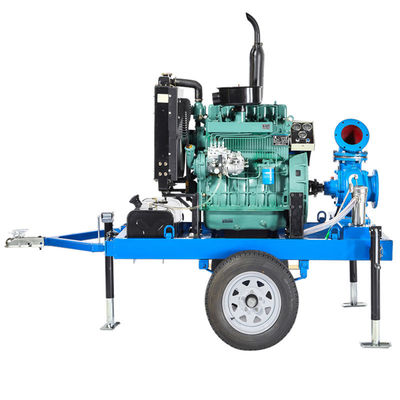

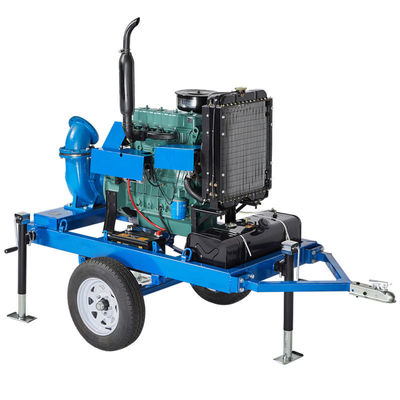

Municipal Flood Emergency Mobile Water Pump
A high-capacity, rapidly deployable solution engineered for urban flood mitigation and
stormwater management. Designed with input from civil engineers, this trailer-mounted
system combines extreme flow rates with rugged portability to protect critical infrastructure
during severe weather events.
1.Underground tunnel drainage during flash floods
2.Bridge/tunnel dewatering operations
3.Levee reinforcement support
4.Post-hurricane urban recovery
Key Features:
Catastrophic Flow Capacity: Moves using a axial-flow or submersible pump design, handling
debris-laden water with vortex impeller technology.

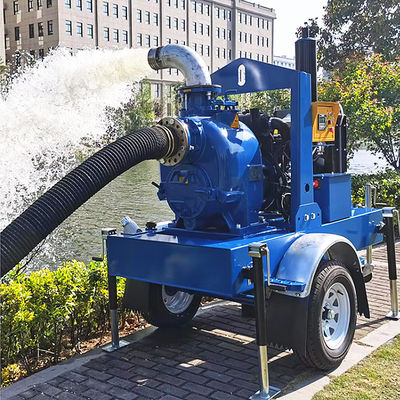

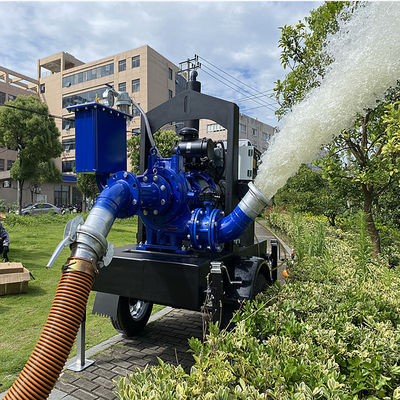

The open-frame drainage pump truck adopts the sewage pump with high self- priming capacity designed with open impeller. After the first irrigation, it can directly self-priming, and the self-priming height reaches 7.6 meters. It is driven by matching diesel engine without external power supply. Equipped with mobile trailer, it can be equipped with various types of traction methods, and is applicable to a variety of different types of tractors. It is mainly used for underground pipe network drainage, urban drainage, emergency flood control, agricultural irrigation, mine drainage, and sewage suction and discharge with various sundries.
Product Feature:
1. Large amount of impurities passing through: it is equipped with a fully open impeller design, which is suitable for sewage containing various impurities, particles and long fibers.
2. Strong self-priming capacity: the supporting self-priming pump is a strong self-priming sewage pump, with a self-priming capacity of 7.6 meters. It can easily feed water without any external vacuum auxiliary equipment;
3. Convenient decontamination port: A convenient decontamination port is designed below the pump cavity inlet. When there are oversized sundries in the pump, the sundries in the pump can be removed without disassembling the pump assembly.
4. Convenient to move: the pump truck adopts a two-wheel tractor. Different types of towing hooks can be selected for front traction, and different types of vehicle traction can be matched;
5. Long working time: equipped with large-capacity oil tank, which can be used continuously for a long time.
6. Control system: the control system automatically monitors the operation data of the diesel engine, and monitors the oil temperature, oil pressure, water temperature, speed, etc. Automatic alarm and shutdown in case of abnormality.
How can I place the order?
Sign the PI,pay deposit,we will arrange the production. After finished production pay balance. Finally we will ship the goods.
Warranty service
Product Description
| NO | Name | Qty | NO | Name | Qty |
| 1 | Self priming sewage pump | 1 Unit | 8 | Support leg | 4 Pcs |
| 2 | Diesel engine | 1 Unit | 9 | Inlet quick coupling | 1 Set |
| 3 | Diesel engine control system | 1 Set | 10 | Outlet quick couping | 1Set |
| 4 | 4 whees trailer | 1 Set | 11 | Inlet hose | 1 Pcs |
| 5 | Hanger | 1 Set | 12 | Outlet hose | 1 Pcs |
| 6 | Battery | 1Set | 13 | Tool | 1 Set |
| 7 | Battery case | 1 Set | 14 | Maintenance kit | 1 Set |
| Model | SPT-10TCP | SPT-12TCP | |
| Diesel engine model | WP4.1D100E200 | WP6D132E200 | |
| Power | KW | 90 | 120 |
| Intake mode | Supercharged intercooling | ||
| Cylinder *stroke | mm×mm | 105×118 | 105×130 |
| Control way | Electrical speed adjust | ||
| Engine btand | Weichai(Optional brand:Cummins,Deutz,Yuchai,Shangchai etc) | ||
| Fuel tank | L | 320 | 370 |
| Pump model | T-10 | T-12 | |
| Max Flow | m³/h | 800 | 1200 |
| Max Head | m | 20 | 20 |
| Impeller Type | Open | ||
| Suction | m | 7.6 | 7.6 |
| Max Solid | mm | 76.2 | 76.2 |
| Pump Speed | r/min | 1500 | |
| Pump Model | T-10 | T-12 | |
| Inlet /outlet | mm | 250 | 300 |
| Unit size | mm | 3900*2100*2200 | 4600*2150*2300 |
| Unit weight | KG | 2200 | 3100 |
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck
3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
|
