| ブランド名: | SANROCK POWER |
| モデル番号: | SPDG20KW |
| MOQ: | 1セット |
| 価格: | Chat with supplier now for more details. |
| パッケージの詳細: | 機械用のヌードパッケージ、スペアパーツ用の木製ボックスパッケージ、または顧客の需要。 |
| 支払条件: | マネーグラム、ウェスタンユニオン、T/T、D/P、D/A、L/C |

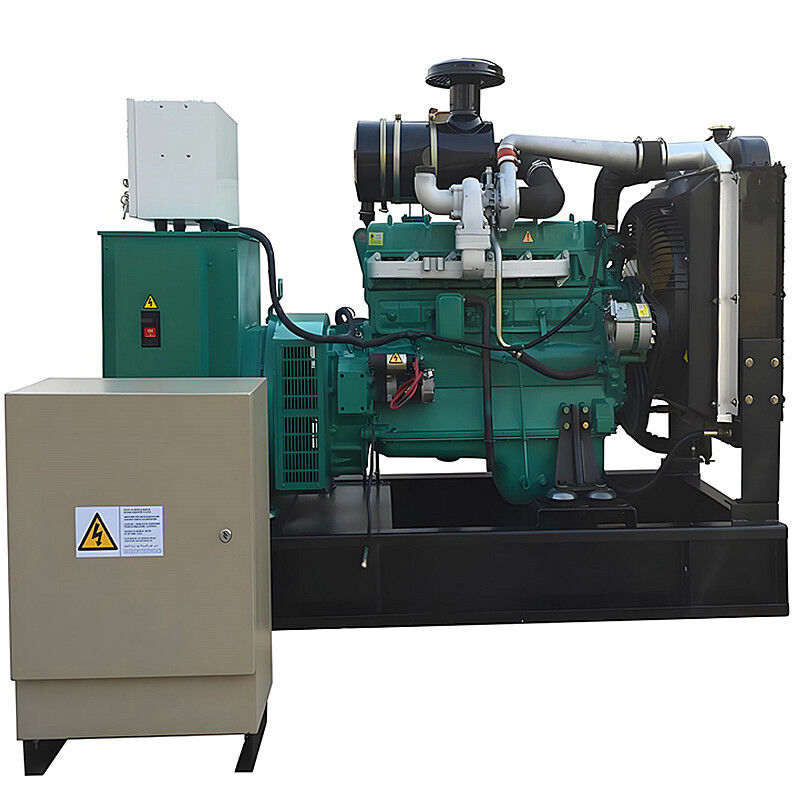

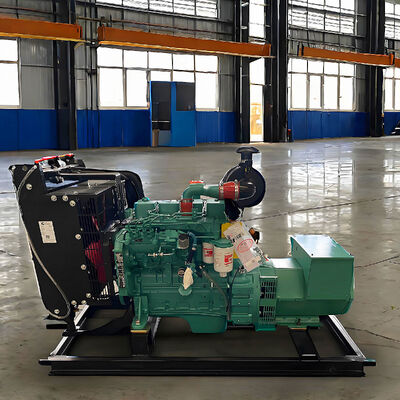

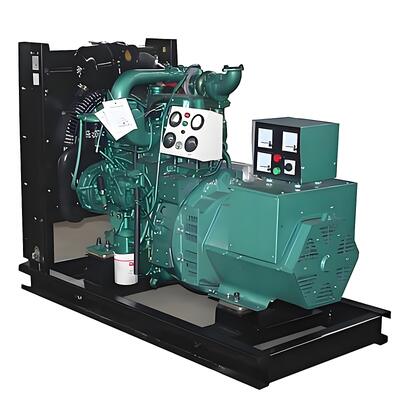

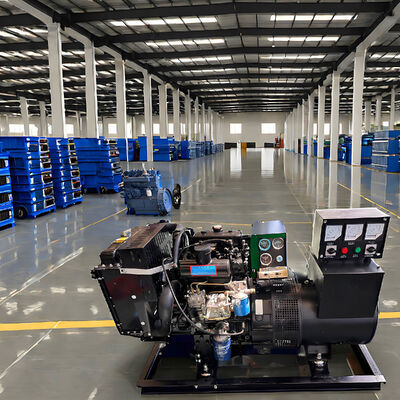

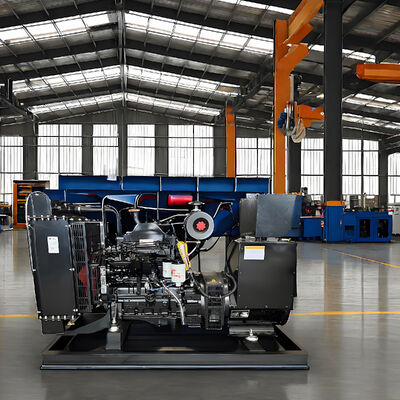

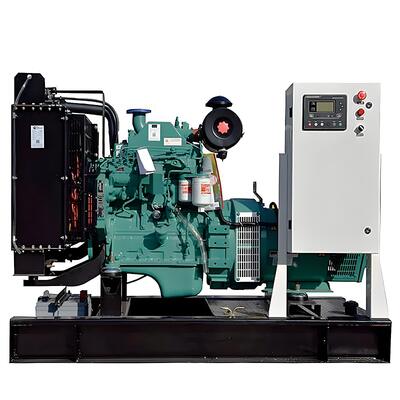

20KW Open-Frame Generator for Outdoor Events – Easy Maintenance Design
Ideal for powering large outdoor events, this 20KW open-frame generator delivers reliable performance for festivals, markets, sports competitions, and temporary installations. Its simple open structure ensures quick access to key components, making routine checks and servicing straightforward even in field conditions.
The unit features a durable steel frame that protects the engine while providing excellent ventilation. With accessible maintenance points and clearly labeled components, troubleshooting and part replacement can be performed efficiently—minimizing downtime during extended operations.
Built for ease of use and serviceability, this generator offers a practical balance of power output, durability, and low-maintenance operation for event organizers and rental companies.
Outdoor Events: Provides electricity for sound systems, lighting, food stalls, and amusement rides at festivals, markets, concerts, and weddings. (Note: Its open-frame design means it is louder and best suited for events where it can be placed a significant distance from the main activity area).
Film and Photo Shoots: A reliable power source for location filming and photography where grid power is inaccessible.
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant,
Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.
Product descriptions from the supplier
100KVA 150KVA 200KVA 300KVA 400KVA 500KVA 700KVA Diesel Genset
"Contact us for specific product details or customized requirements"
Product Description
| Technical parameters of diesel generator set Generator set model:SPDG20KW Steady state voltage adjustment rate (%):≤± 1 Generator power:20kW/25kVA Voltage fluctuation rate (%):≤ ± 0.5 Power factor:COSΦ = 0.8 (lagging) Transient voltage adjustment rate (%):＋20 ～－15 Output voltage:400V/230V Voltage stabilization time (s):≤1 Generator set current:36A Steady state frequency adjustment rate (%):≤ ± 1 Rated frequency:50Hz Frequency fluctuation rate (%):≤ ± 0.5 Rated speed:1500rpm Transient frequency adjustment rate (%):+ 10 ~ -7 Fuel grade:(standard) 0 # light diesel (normal temperature) Frequency stabilization time (S):≤3 Diesel generator size:1620*620*1380(L*W*H mm Diesel generator fuel consumption (100% load):224g/kW·h Diesel generator weight:600kg Diesel generator volume(LP7m):95dB(A) Technical parameters of diesel engine Cooling method: Closed water-cooling Oil supply method: direct injection Engine cylinder number: 4 / L Type Speed regulation method: Mechanical Bore stroke: 102*120mm Intake method: Natural inhalation Compression ratio: 16.5:1 Overload capacity: 110% Start method:DC 24V Electric start Diesel engines Speed: 1500rpm Technical parameters of generator Protection level:IP22 Wiring mode:Three-phase four-wire, Y-connection Generator power: 20kW/25kVA Adjustment method: AVR (Automatic Voltage Regulator) Rated voltage: 400V / 230V Output frequency: 50Hz Insulation class: H class Output factor: COSΦ = 0.8 (lag) |
Customizable Options: SANROCK POWER Machinery Co., Ltd., offers various customization options for their products, including different genset power and frequency settings. This flexibility allows users to select the most appropriate equipment for their specific requirements, ensuring optimal performance and energy efficiency.
SANROCK POWER Machinery is committed to offering competitive prices without compromising on quality. Their products come with a 3-year warranty period, which provides customers with the assurance and peace of mind necessary to confidently purchase and utilize their generators.
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck
3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
|
