| ブランド名: | SANROCK POWER |
| モデル番号: | SPDG20KW |
| MOQ: | 1セット |
| 価格: | Chat with supplier now for more details. |
| パッケージの詳細: | 機械用のヌードパッケージ、スペアパーツ用の木製ボックスパッケージ、または顧客の需要。 |
| 支払条件: | マネーグラム、ウェスタンユニオン、T/T、D/P、D/A、L/C |

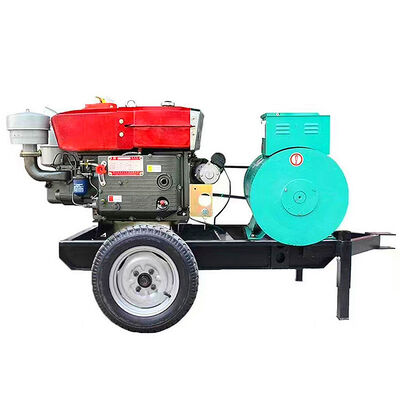

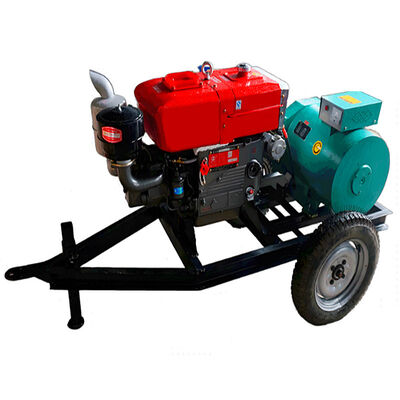

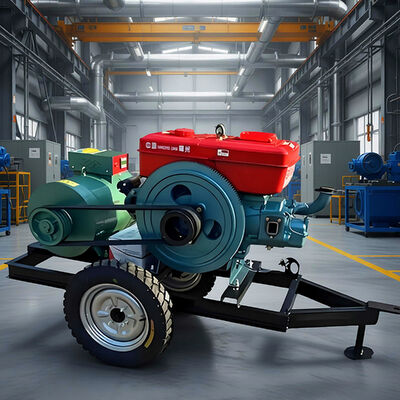

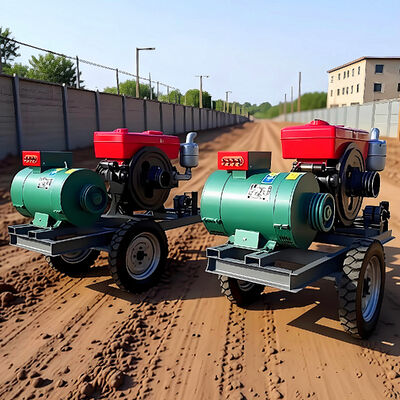

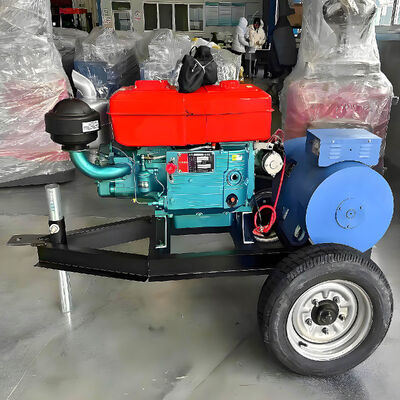

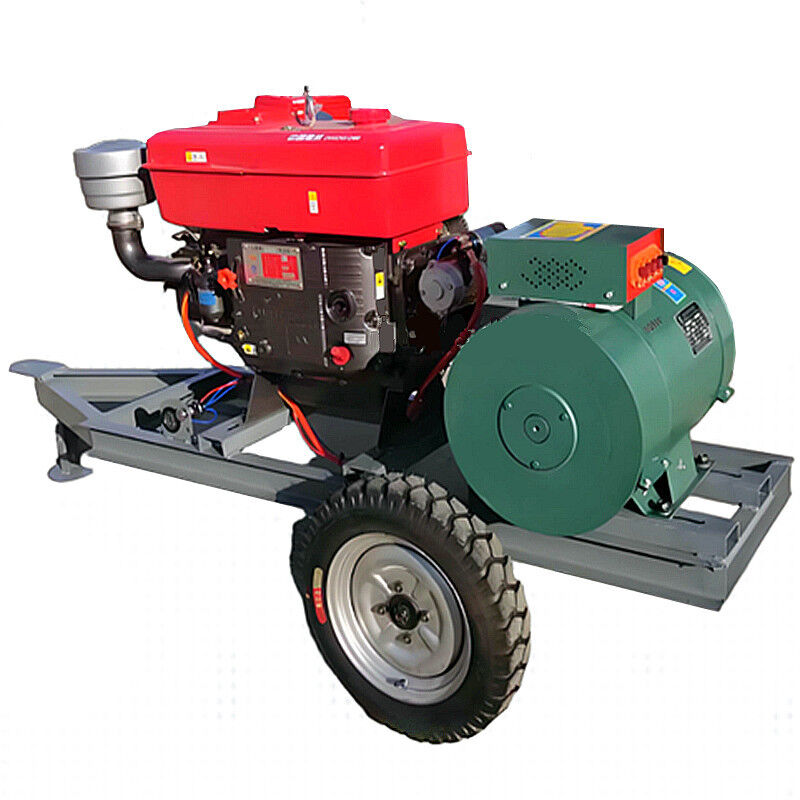

20kW Trailer-Mounted Open Frame Diesel Generator for Remote Areas
This heavy-duty 20kW trailer-mounted open frame diesel generator is specifically engineered to deliver reliable prime power in the most demanding and inaccessible remote locations. Its robust design combines exceptional off-road mobility with uncompromising performance, making it an ideal power solution for mining camps, agricultural operations, rural construction projects, and emergency response teams operating far from established infrastructure.
Mounted on a reinforced, all-terrain trailer with high-clearance axles, heavy-duty suspension, and rugged, large-diameter tires, this unit is built to withstand harsh, unpaved roads and uneven ground. The open frame construction provides superior engine cooling for continuous operation in high-temperature environments while allowing for easy maintenance access—a critical feature when professional service support is hours away.
Key Features for Remote Area Deployment:
Exceptional Off-Road Capability: Designed to be towed by 4x4 vehicles over rough, unmaintained tracks to reach isolated sites.
Extended Autonomous Operation: Features a high-capacity fuel tank and superior diesel fuel efficiency, minimizing the frequency of refueling missions in areas where fuel supply is logistically challenging.
Ruggedized Construction: The generator and trailer are built with corrosion-resistant materials and components to endure extreme weather conditions, from desert heat to high humidity.
Simplified Field Maintenance: The accessible open design allows on-site personnel to perform essential checks and routine servicing with standard tools.
Critical Power Reliability: Delivers stable 20kW output to power drilling equipment, water pumps, communication systems, temporary shelters, and other essential machinery, enabling operations independent of the main electrical grid.
This generator is the definitive power partner for industries and missions where reliability, durability, and mobility are not just advantages but absolute necessities for success in remote environments.
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant,
Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.
Product descriptions from the supplier
100KVA 150KVA 200KVA 300KVA 400KVA 500KVA 700KVA Diesel Genset
"Contact us for specific product details or customized requirements"
Product Description
| Technical parameters of diesel generator set Generator set model:SPDG20KW Steady state voltage adjustment rate (%):≤± 1 Generator power:20kW/25kVA Voltage fluctuation rate (%):≤ ± 0.5 Power factor:COSΦ = 0.8 (lagging) Transient voltage adjustment rate (%):＋20 ～－15 Output voltage:400V/230V Voltage stabilization time (s):≤1 Generator set current:36A Steady state frequency adjustment rate (%):≤ ± 1 Rated frequency:50Hz Frequency fluctuation rate (%):≤ ± 0.5 Rated speed:1500rpm Transient frequency adjustment rate (%):+ 10 ~ -7 Fuel grade:(standard) 0 # light diesel (normal temperature) Frequency stabilization time (S):≤3 Diesel generator size:1620*620*1380(L*W*H mm Diesel generator fuel consumption (100% load):224g/kW·h Diesel generator weight:600kg Diesel generator volume(LP7m):95dB(A) Technical parameters of diesel engine Cooling method: Closed water-cooling Oil supply method: direct injection Engine cylinder number: 4 / L Type Speed regulation method: Mechanical Bore stroke: 102*120mm Intake method: Natural inhalation Compression ratio: 16.5:1 Overload capacity: 110% Start method:DC 24V Electric start Diesel engines Speed: 1500rpm Technical parameters of generator Protection level:IP22 Wiring mode:Three-phase four-wire, Y-connection Generator power: 20kW/25kVA Adjustment method: AVR (Automatic Voltage Regulator) Rated voltage: 400V / 230V Output frequency: 50Hz Insulation class: H class Output factor: COSΦ = 0.8 (lag) |
Customizable Options: SANROCK POWER Machinery Co., Ltd., offers various customization options for their products, including different genset power and frequency settings. This flexibility allows users to select the most appropriate equipment for their specific requirements, ensuring optimal performance and energy efficiency.
SANROCK POWER Machinery is committed to offering competitive prices without compromising on quality. Their products come with a 3-year warranty period, which provides customers with the assurance and peace of mind necessary to confidently purchase and utilize their generators.
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck
3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
|
