| ブランド名: | SANROCK POWER |
| モデル番号: | SPDG20KW |
| MOQ: | 1セット |
| 価格: | Chat with supplier now for more details. |
| パッケージの詳細: | 機械用のヌードパッケージ、スペアパーツ用の木製ボックスパッケージ、または顧客の需要。 |
| 支払条件: | マネーグラム、ウェスタンユニオン、T/T、D/P、D/A、L/C |

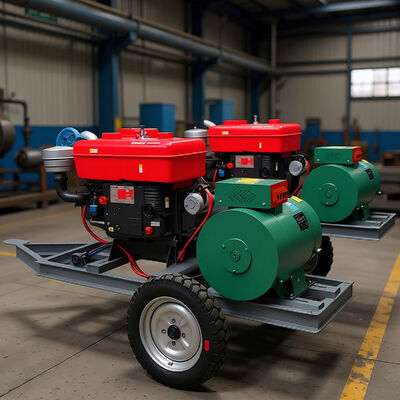

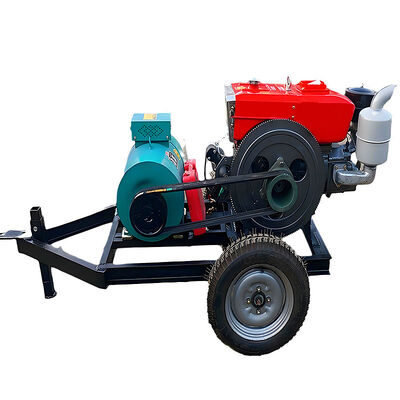

220V Rated Two-Wheel 20kW Open-Frame Diesel Generator
Engineered for applications requiring specific single-phase power supply, this two-wheel 20kW open-frame diesel generator delivers stable 220V output with industrial-grade reliability. The unit features a precision-engineered alternator system optimized for consistent voltage regulation and waveform purity, making it suitable for powering 220V equipment commonly used in international markets and specialized applications.
The generator integrates a proven diesel engine with an open-frame design that maximizes heat dissipation during extended operation. The configuration eliminates the need for complex installation, making it ideal for temporary power applications where quick setup and reliability are critical.

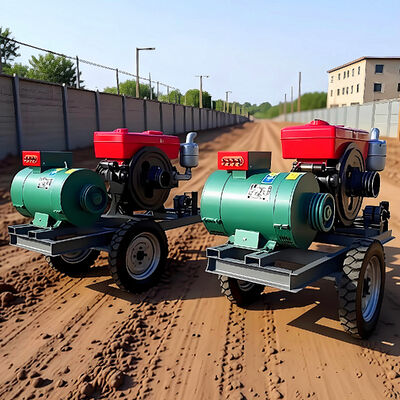

Ideal for construction sites, agricultural operations, event power supply, and emergency backup scenarios, this trailer-mounted solution delivers professional-grade performance with the flexibility to rapidly relocate as operational needs change. The unit is pre-wired for quick connection and includes overload protection and low-oil automatic shutdown for dependable, unattended operation.
Key Specifications:
Rated Voltage: 220V single-phase AC output (50Hz/60Hz switchable)
Power Capacity: 20kW continuous power rating with 22kW peak capacity
Voltage Stability: Automatic Voltage Regulator (AVR) maintains ±1.5% voltage deviation
Mobility System: Balanced two-wheel configuration with pneumatic tires and ergonomic tow handle
Safety Compliance: Built-in circuit breaker, overload protection, and low-oil automatic shutdown
Applicable Industries
Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant,
Home Use, Retail, Food Shop, Printing Shops, Construction works , Energy & Mining, Food & Beverage Shops, Other, Advertising Company.
Product descriptions from the supplier
100KVA 150KVA 200KVA 300KVA 400KVA 500KVA 700KVA Diesel Genset
"Contact us for specific product details or customized requirements"
Product Description
| Technical parameters of diesel generator set Generator set model:SPDG20KW Steady state voltage adjustment rate (%):≤± 1 Generator power:20kW/25kVA Voltage fluctuation rate (%):≤ ± 0.5 Power factor:COSΦ = 0.8 (lagging) Transient voltage adjustment rate (%):＋20 ～－15 Output voltage:400V/230V Voltage stabilization time (s):≤1 Generator set current:36A Steady state frequency adjustment rate (%):≤ ± 1 Rated frequency:50Hz Frequency fluctuation rate (%):≤ ± 0.5 Rated speed:1500rpm Transient frequency adjustment rate (%):+ 10 ~ -7 Fuel grade:(standard) 0 # light diesel (normal temperature) Frequency stabilization time (S):≤3 Diesel generator size:1620*620*1380(L*W*H mm Diesel generator fuel consumption (100% load):224g/kW·h Diesel generator weight:600kg Diesel generator volume(LP7m):95dB(A) Technical parameters of diesel engine Cooling method: Closed water-cooling Oil supply method: direct injection Engine cylinder number: 4 / L Type Speed regulation method: Mechanical Bore stroke: 102*120mm Intake method: Natural inhalation Compression ratio: 16.5:1 Overload capacity: 110% Start method:DC 24V Electric start Diesel engines Speed: 1500rpm Technical parameters of generator Protection level:IP22 Wiring mode:Three-phase four-wire, Y-connection Generator power: 20kW/25kVA Adjustment method: AVR (Automatic Voltage Regulator) Rated voltage: 400V / 230V Output frequency: 50Hz Insulation class: H class Output factor: COSΦ = 0.8 (lag) |
Customizable Options: SANROCK POWER Machinery Co., Ltd., offers various customization options for their products, including different genset power and frequency settings. This flexibility allows users to select the most appropriate equipment for their specific requirements, ensuring optimal performance and energy efficiency.
SANROCK POWER Machinery is committed to offering competitive prices without compromising on quality. Their products come with a 3-year warranty period, which provides customers with the assurance and peace of mind necessary to confidently purchase and utilize their generators.
FAQ
1. how can we guarantee quality?
Always a pre-production sample before mass production; Always final Inspection before shipment;
2.what can you buy from us?
Screw Air Compressor,Reefer Container Generator,Diesel Generator,Light Tower,Sewage Pump,Centrifugal Pump,Fire Pump System,Mobile Pump Truck
3. what services can we provide?
Accepted Delivery Terms: FOB,CIF,EXW,Express Delivery；
Accepted Payment Currency:USD,CNY;
Accepted Payment Type: T/T,L/C,MoneyGram,Credit Card,Western Union,Cash;
Language Spoken:English,Chinese,Spanish
|
